Events

"Event" blocks in EV3 are like special buttons that you can program to make your robot do specific actions when certain events happen. They add a lot of fun and interactivity to your robot's behavior!

We are going to explore these blocks:

-> "When the program begins": it's the most common used block.

-> We can also use the sensors to start the program, as long as it meet the condition.

-> The broadcast block are to send message from one code to the other.

The 5 buttons of the brick:

There are 5 buttons you can press and starts the program.

The "no" means: no button press (just like "when the program starts")

The "center" and "left" button

When "center" button is pressed

Notice that the video/image is x2 speed.

1- The robot wait for you press "center" buttom

2-Robot move forward 300 degrees at the speed of 30%

3- Motor A move 200 degrees clockwise at the speed of 20%

4-Robot move forward 400 degrees at the speed of 30%

5- Motor A move 100 degrees counter-clockwise at the speed of 20%

6-Robot move backward 300 degrees at the speed of 30%

7- Stop and Exit program

When "left" button is pressed

1- The robot wait for you press "left" buttom

2-Robot move forward 1000 degrees, left wheel at the speed of -60% and right wheel at the speed of 0%

-> Robot make a pivot turn of 1000 degrees.

The sensors

Ultrasonic Sensor

1- The robot wait for ultrasonic sensor sense "less than 15cm"

2-Robot move forward 1000 degrees, left wheel at the speed of -60% and right wheel at the speed of -20%

-> Robot make a pivot turn of 1000 degrees.

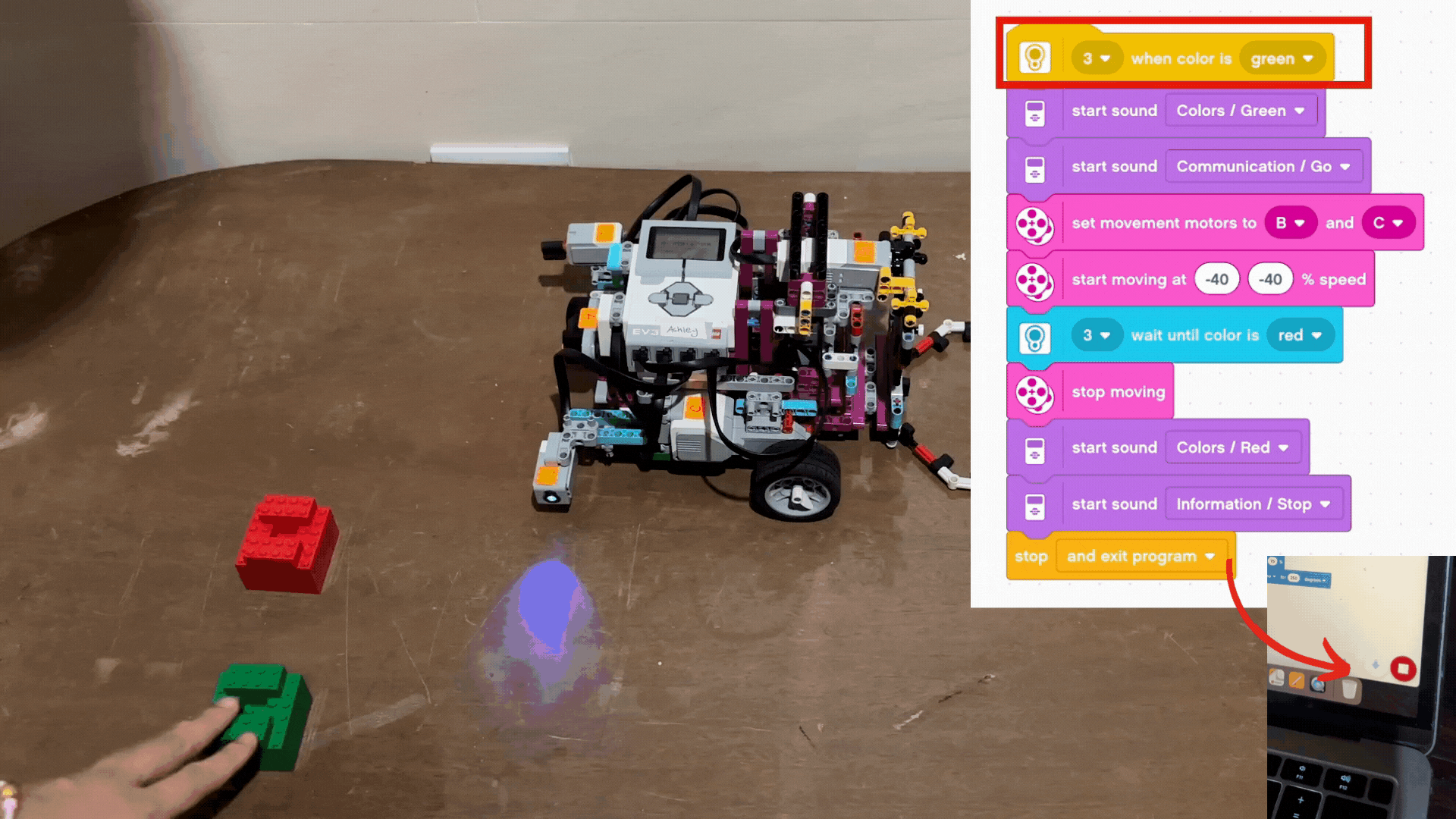

Color Sensor

1- The robot wait until color sensor read "green"

2- Robot say "Green". And then say "Go"

3-Robot "starts moving" backward at the speed of 40%

4- Until color sensor read "red"

5- Robot stop moving

6- Robot say "Red". And then say "Stop"

7- Stop and Exit program

Touch Sensor + display

1- The robot wait until touch sensor is "pressed"

2- Robot display robot "smile" face for 1 second

3- Robot display robot "wink" face for 1 second

4- Robot display robot "smile" face for 1 second

5- Robot display robot "wink" face for 1 second

6- Stop and Exit program

Broadcast

Remember this code from Control "wait" block?

We are going to use broadcast.

Notice: you can change the name of the broadcast.

-> Broadcast named "broadcast1" is Motor A moves clockwise of 250 degrees at the speed of 75%

1- Robot move 450 degreees forward at the speed of 50%

2- Robot wait for 1 second

3- Code broadcast receive message called "broadcast1"

which it's Motor A moves clockwise of 250 degrees at the speed of 75%

Observations: Why is "Event" important for programming?

-> Triggered Actions: They allow the robot to perform actions in response to specific events, like pressing a button, detecting a color, or hearing a sound.
-> Messages between Parts: Think of broadcasts as messages that robots send to each other. It's like sending a secret signal to tell your friend something.
-> It allows robot to interact with its environment, respond to commands, and perform actions based on specific events

Time for a quiz!

Question goes here

Challenge for you

I want you to use:

-> Event for gyro Sensor block. Robot move toward the left

-> "Reset angle" block

-> Wait for 1 second

-> Stop and exit program

-> Speed is 50% and robot move forward for 500 degrees.

-> The angle is 45 degrees

Notice that you need to spin a bit the robot to the left, so that the gyro count 45 degrees.

If it didn't work, it might be because of the inequality symbol.
