Sensors

Sensors in EV3 are very important because they help the robot "see" and "feel" its surroundings in order for EV3 to make smart decisions based on what it senses.

There are 5 type of sensors:

Color Sensor

Touch Sensor

Ultrasonic Sensor

Gyro Sensor

Ev3 Brick

Gyro Sensor

-> The Ultrasonic Sensor in EV3 it help the robot to make accurate turns.

TIt's especially handy for tasks like driving in a straight line, making precise turns, or maintaining balance on two wheels.

Without the Gyro Sensor, the robot might wobble, tip over, or get lost easily.

The Gyro Sensor is like a compass inside the robot's brain. It helps the robot know:

Which way it's facing, just like how you know which way is north when you use a compass.

A way to know how much degrees is:

-> This shows the amount of how much the robot have rotate.

-> It can be either positive(to the right) or negative(to the left) numbers.

-> It is shown in degrees

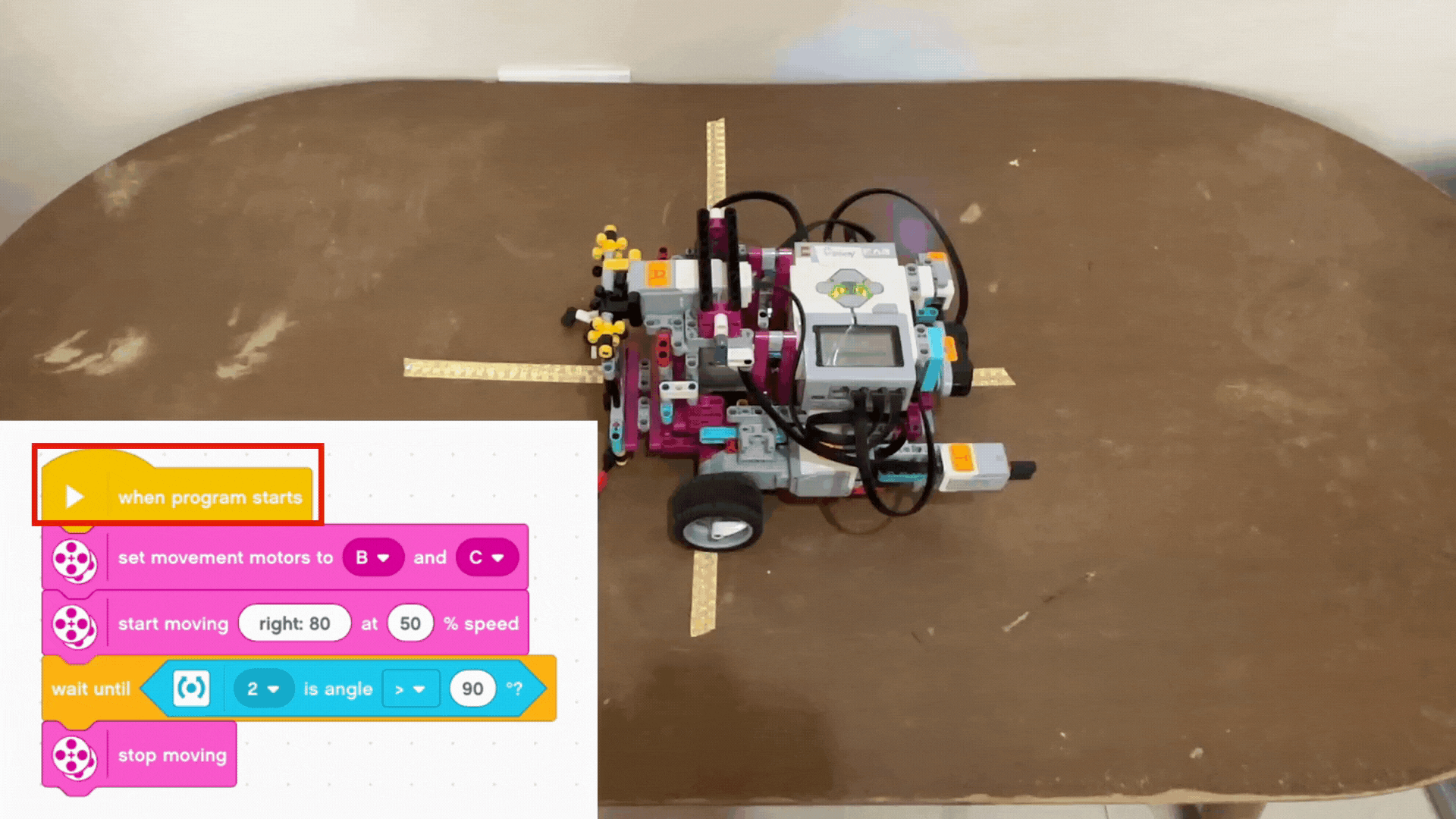

Wait until "90 degrees"

Or

1- Move until gyro sensor > 90 degrees

2- Robot stop moving

1- Wait [Motors make a right spin turn at speed of 50%] UNTIL [gyro sensor counts "more than 90 degrees"]

2- Stop turning.

"Reset angle" block

It's very important to add the reset angle. Because:

-> Gyro sensor does not know where you want the robot to point (the zero degree)

2- Will add extra degrees which make your robot not accurate.

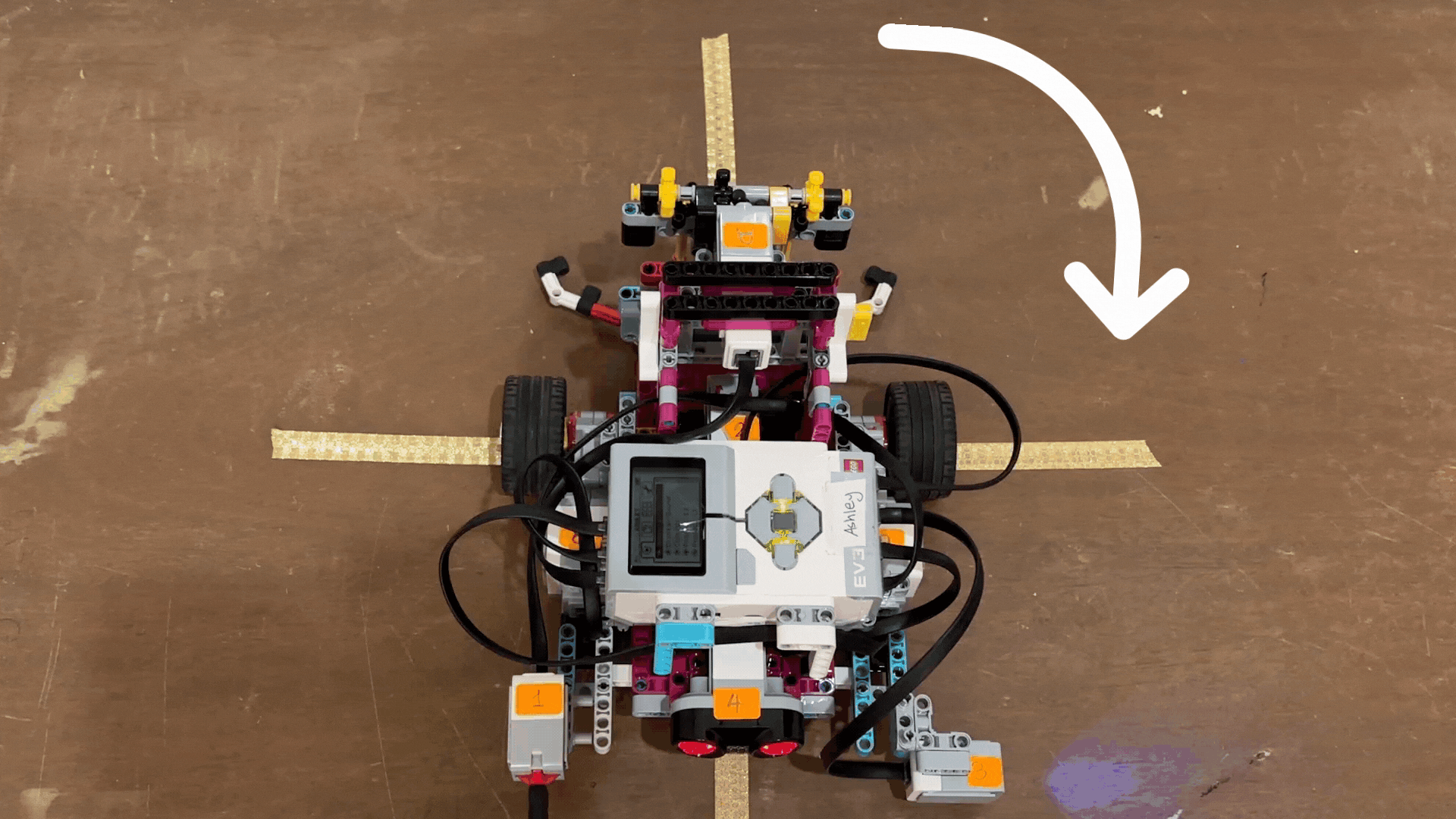

Spin Turn Right:

1- Wait [Motors make a RIGHT spin turn at speed of 50%] UNTIL [gyro sensor counts "more than 90 degrees"]

2- Stop turning.

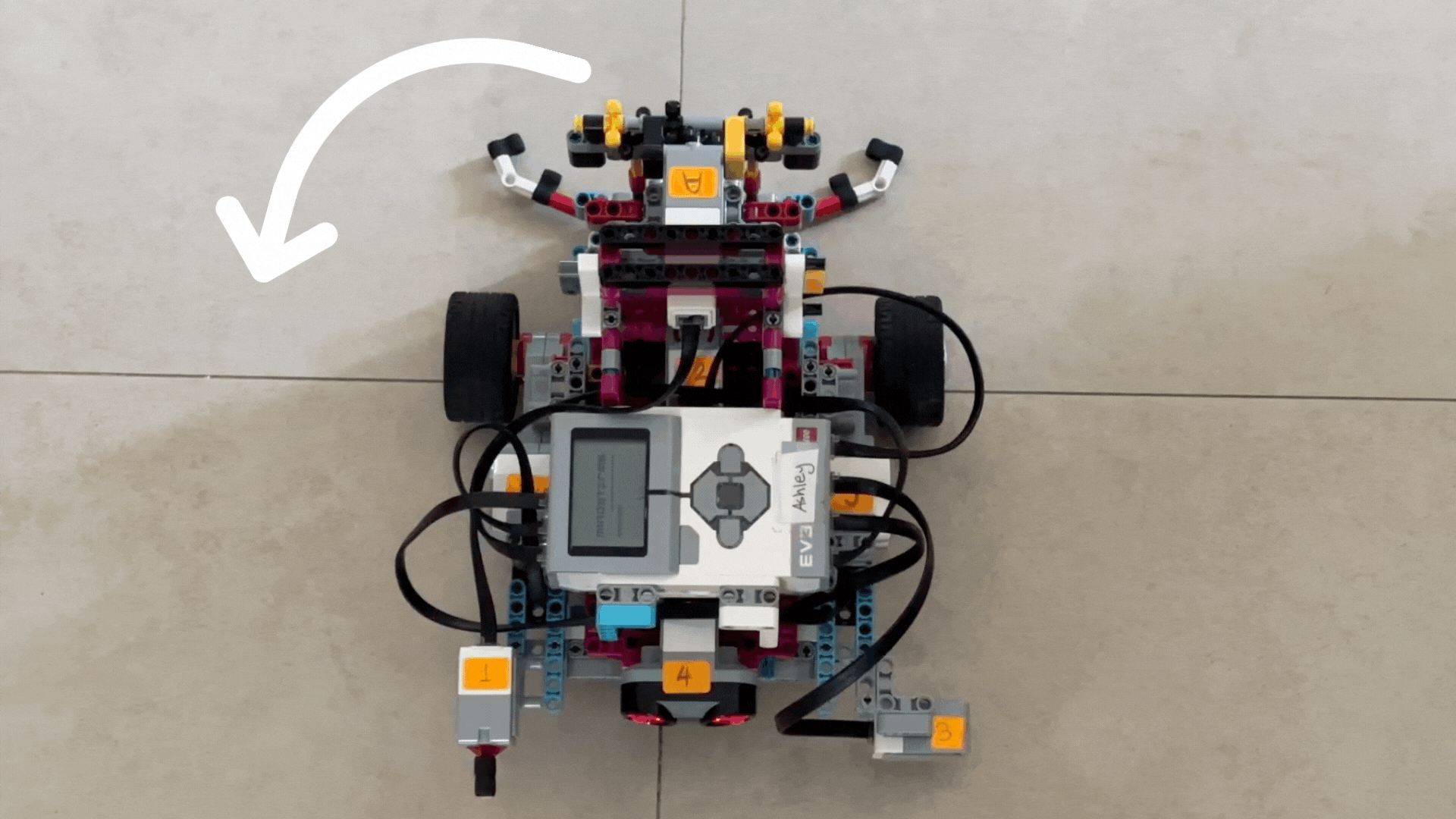

Spin Turn Left:

1- Wait [Motors make a LEFT spin turn at speed of 50%] UNTIL [gyro sensor counts "more than 90 degrees"]

2- Stop turning.

Remember in this challenge in Movement?

I told you that we are going to fix this challenge to make the turns more accurate

Notice that the robot does not turn accurately.

We are going to fix it by using: gyro sensor

-> Notice that I used the control: "Repeat" block

-> I decided to do it the other way, turning to the right instead of left

-> But you can do it making the robot turning right

-> It depends on the ground surface where the robot it's in. For example:

- If my robot it's in a slippery ground, I will need less than 92 degrees.

- If my robot it's in a hard ground, I will probably need more than 92 degrees.

I needed 92 degrees to make the robot turn how I wanted it.

Key-Takeaways: Why is Touch sensor important for programming?

-> Precision in Movement: It helps the robot move precisely. By measuring rotation and tilt, it ensures that the robot can make accurate turns.
-> Stability: helps the robot maintain balance, especially when it's moving on two wheels or in challenging terrain/ground.
-> Orientation Awareness: It provides the robot with awareness of its orientation in space. This allows the robot to understand which way it's facing and make adjustments to its movements accordingly.
-> Good Navigation: It helps the robot follow a straight path, make precise turns, and navigate complex routes with confidence.
-> Real-world Applications:
- Drones
- Airplanes
- Robot Vacuum Cleaners
- Spacecraft and Satellites
- Remote-controlled Cars

Time for a quiz!

Question goes here

Challenge for you

Hint:

-> Robot stops when gyro sensor sense "180 degrees" (half circle)

-> Use "start moving" to right: 90. The speed is 50%.

You might need more or less than 180 degrees. So it's okay if it's not 180 degree to make the robot turn half circle.
