Movement
The movement blocks move 2 motors at the same time.

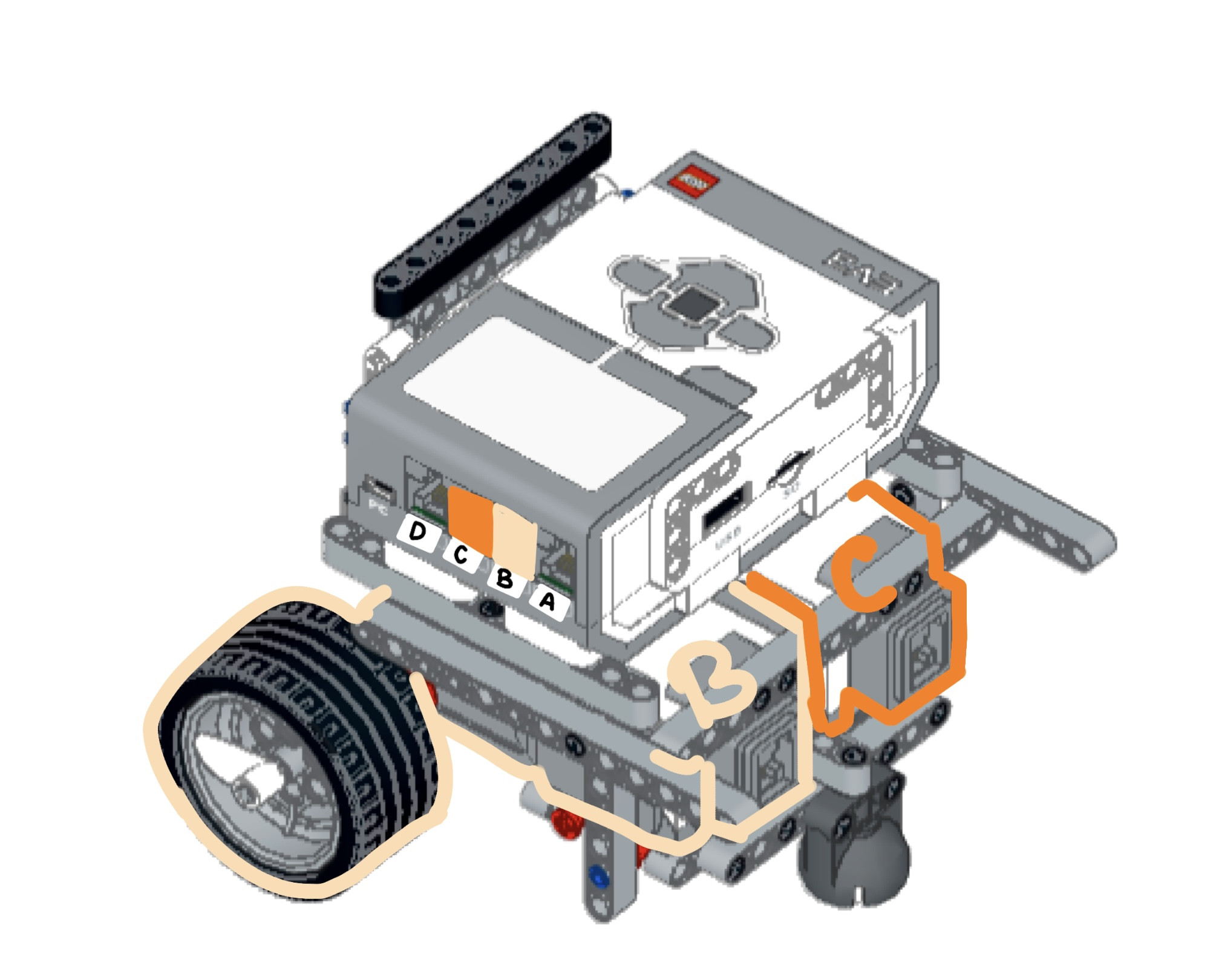

(In my case, I connect Motors B and C)

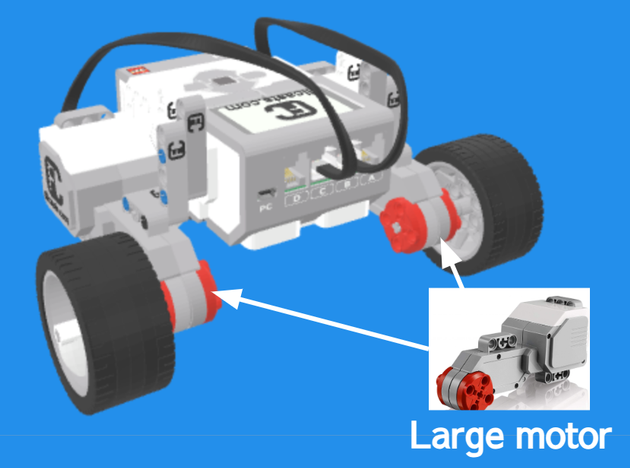

We are using 2 of these large motors to make up the wheels.

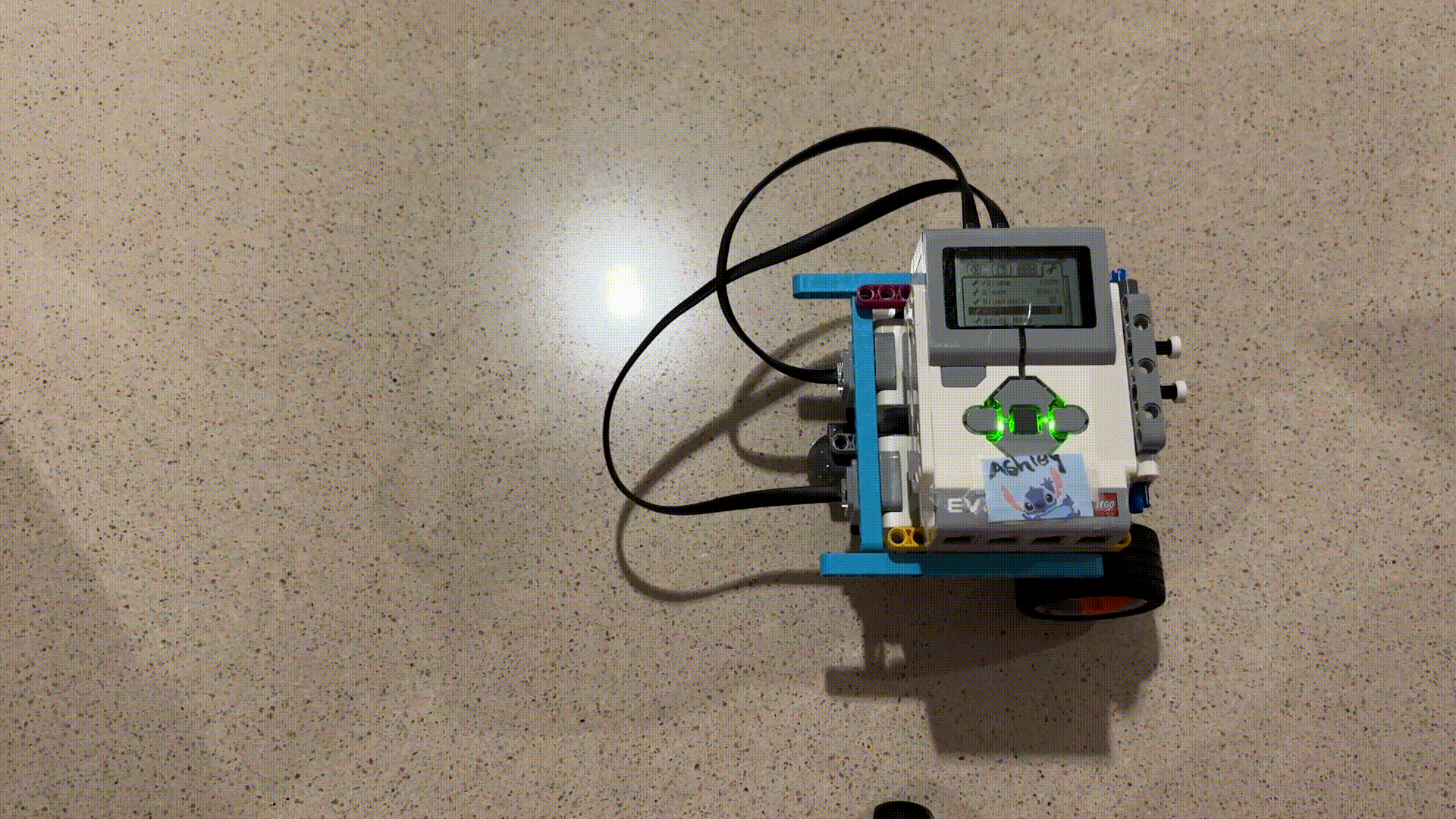

Look at the white pointy lego. Notice that the wheel rotates a full circle.

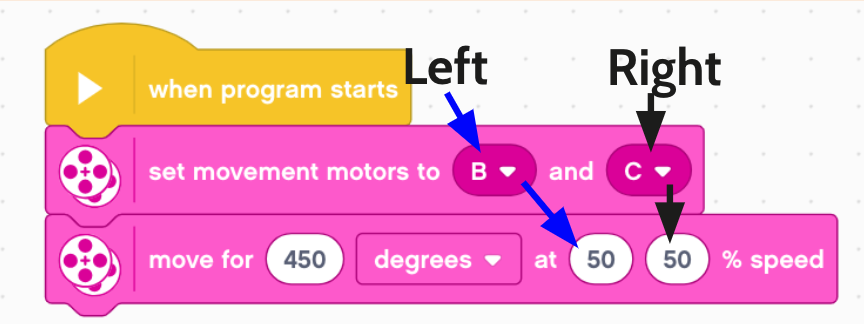

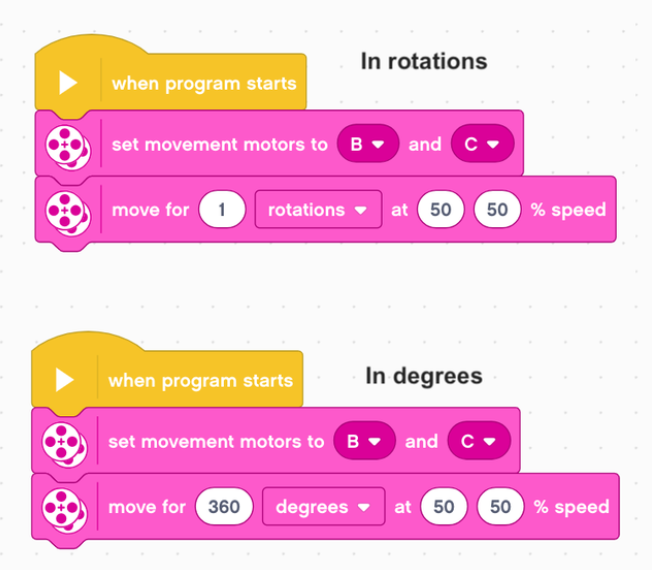

These 2 codes are the same:
You use Positive(+) and Negative(-) numbers.

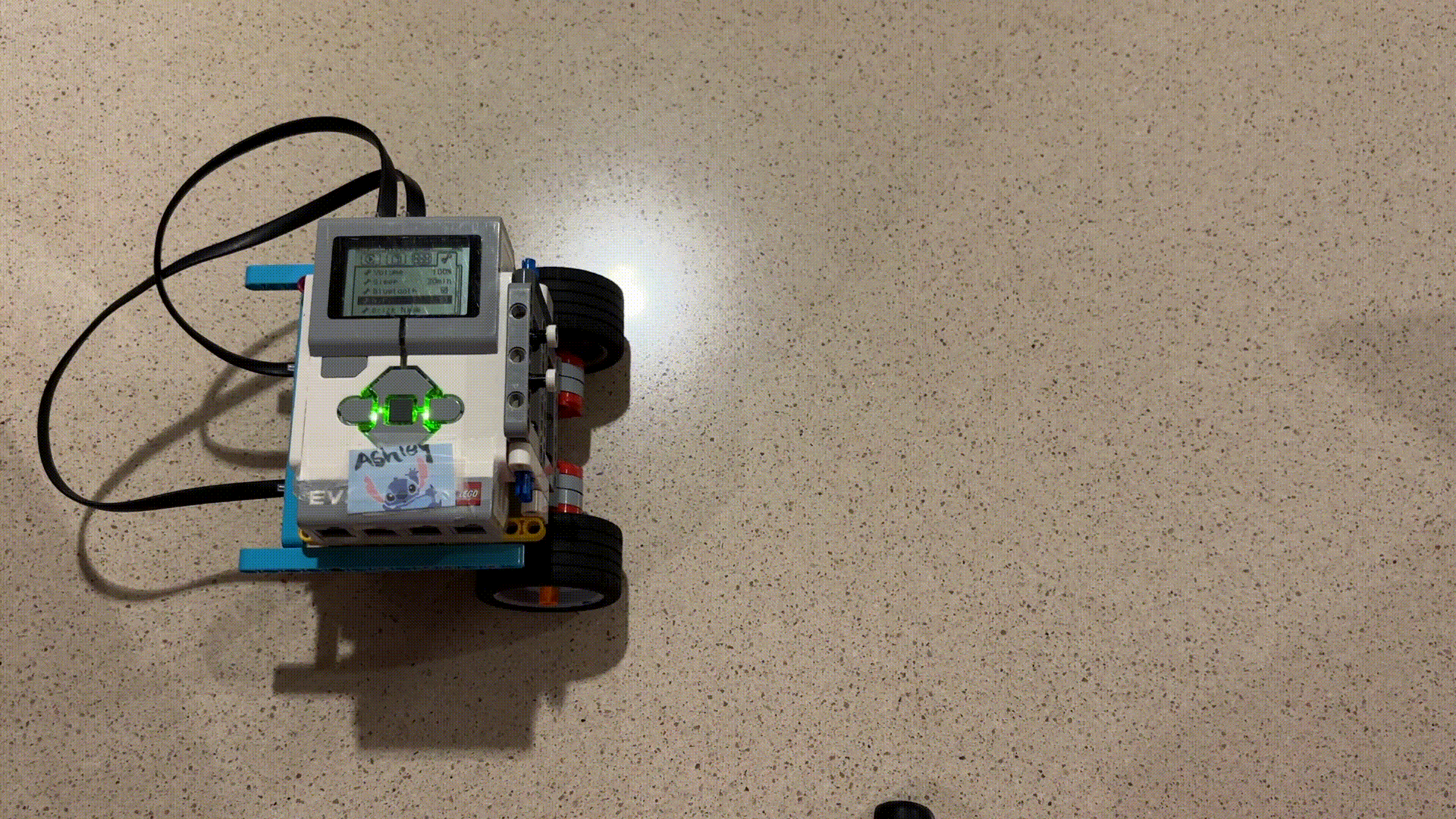

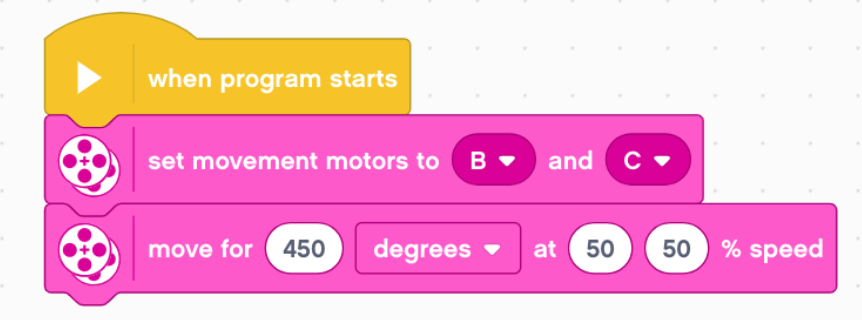

The robot moves 450 degress FORWARD at the speed of 50%.
➡️ Notice that BOTH speed are positives

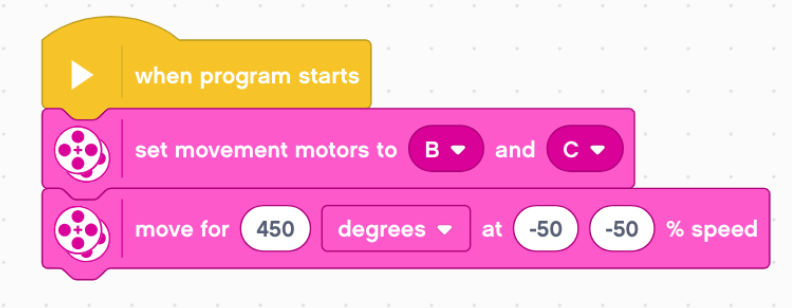

The robot moves 450 degress BACKWARD at the speed of -50%.
➡️ Notice that BOTH speed are negatives

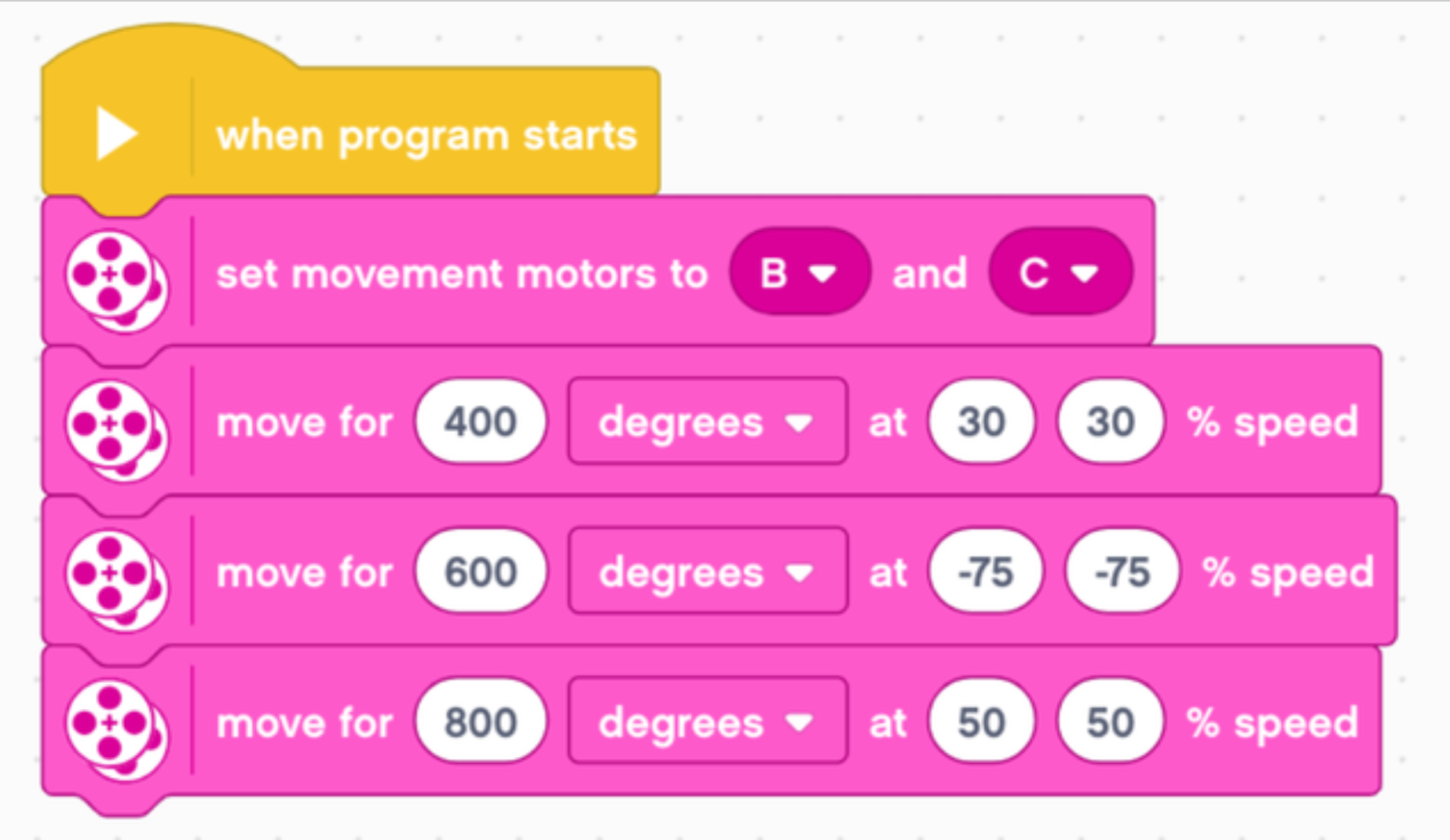

Notice that you can change the degrees and speed. As long as they are the same numbers. For example: [-75]speed for both.

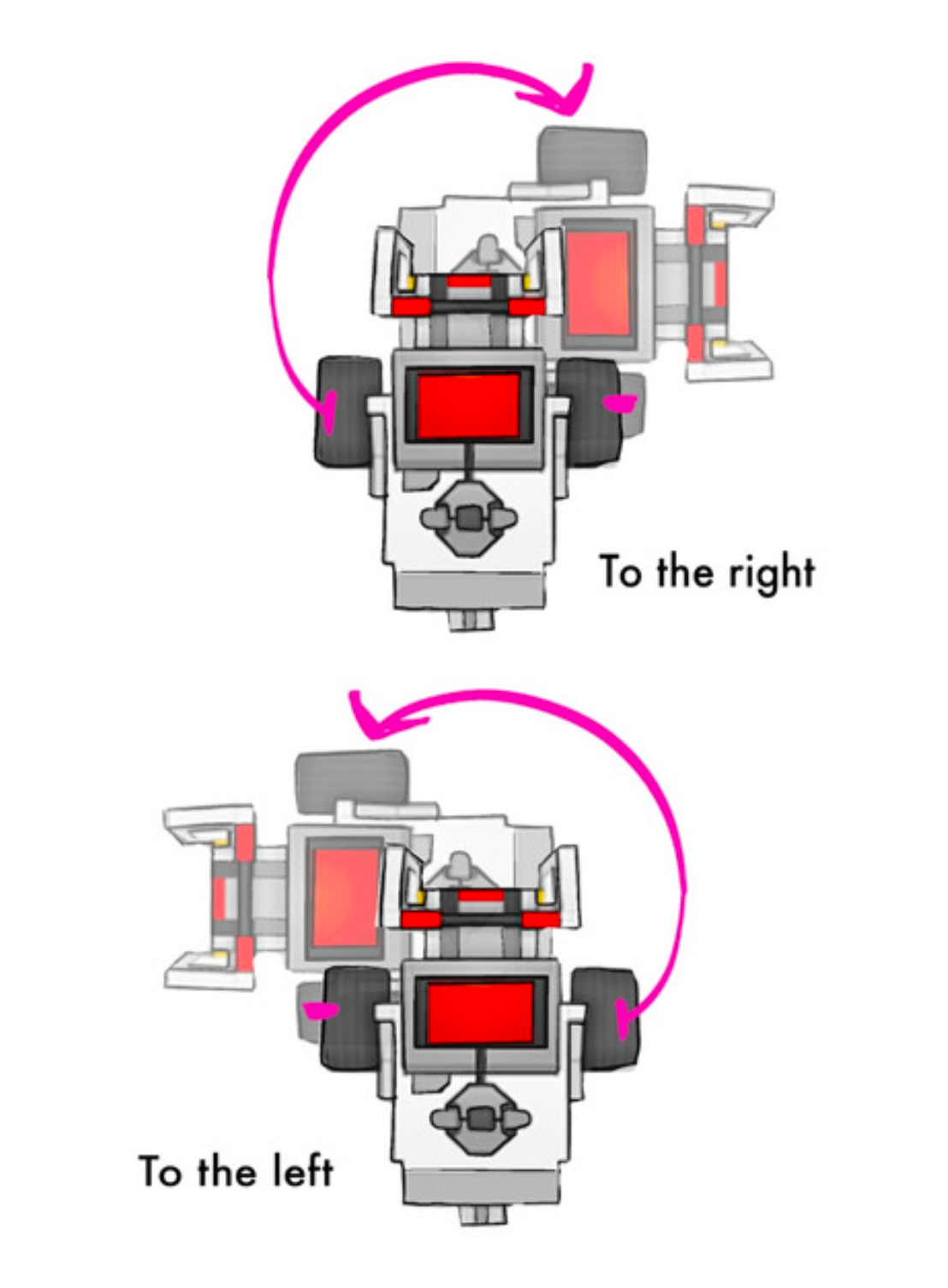

➡️ Only one wheel moves. The other one doesn't move.

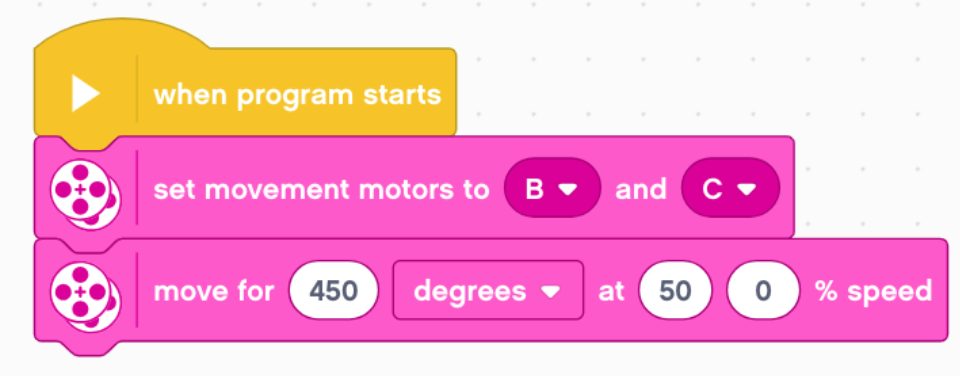

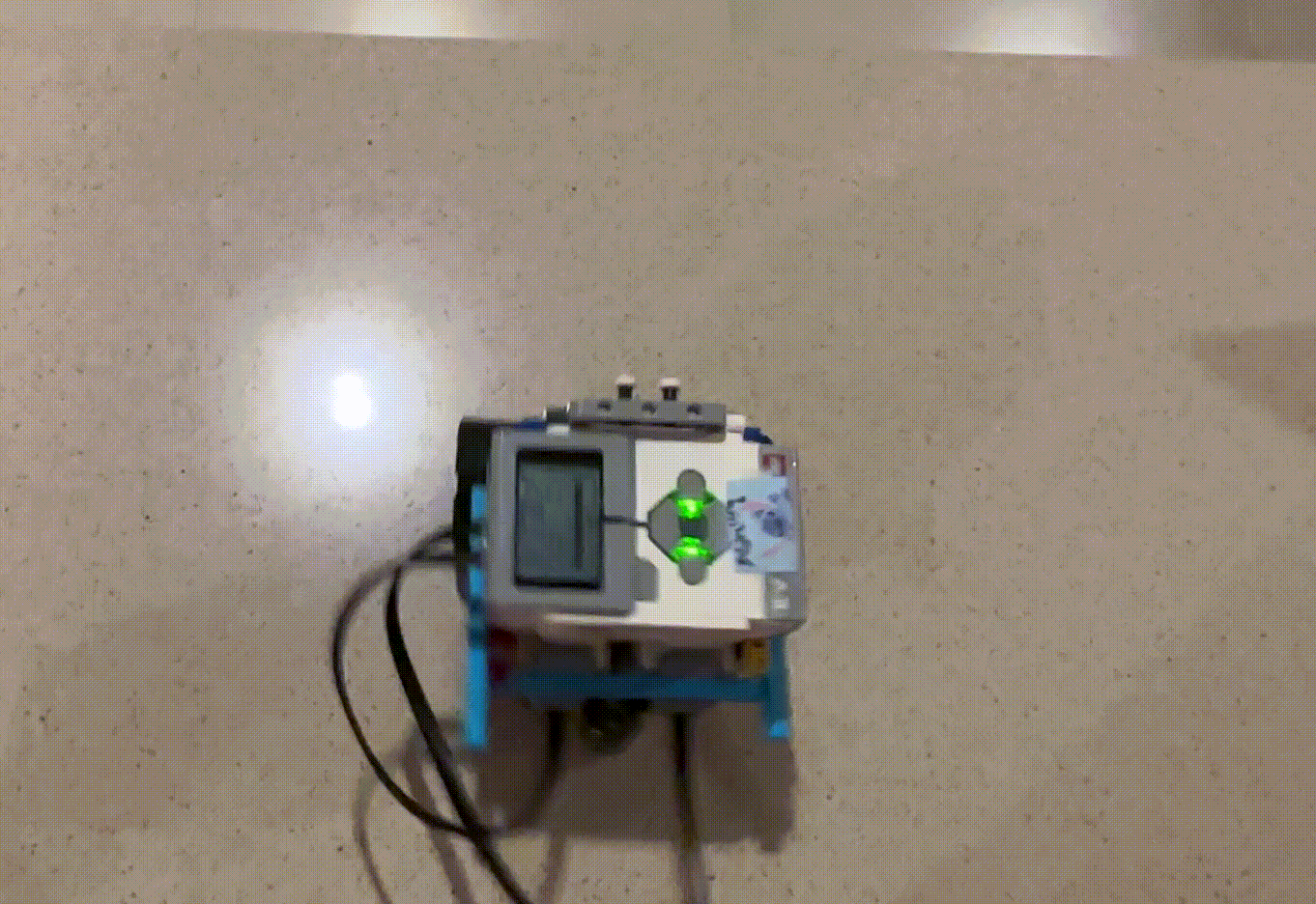

The robot turns 450 degress to the RIGHT at the speed of 50%
➡️ Only motor B moves, turning toward Motor C

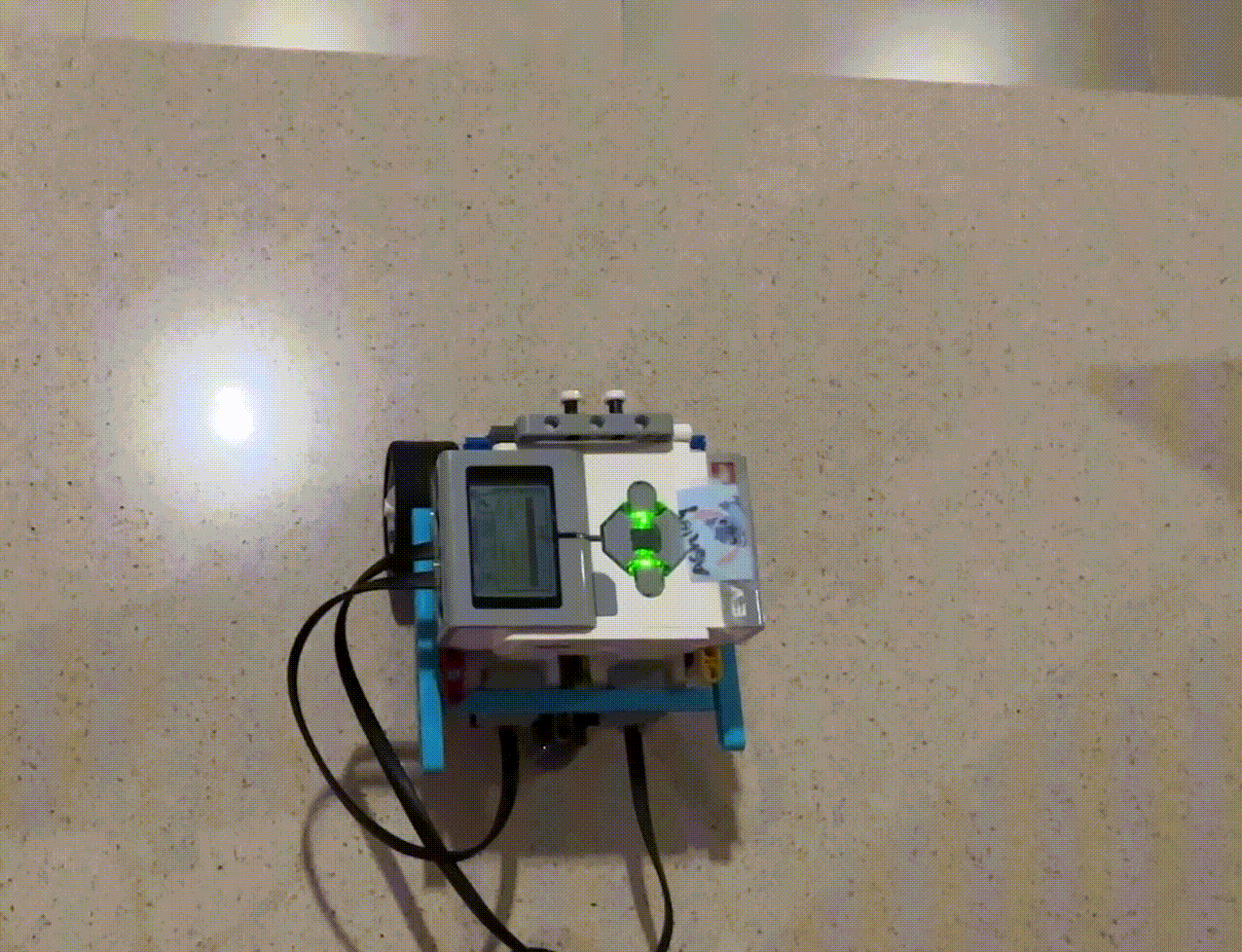

The robot turns 750 degress to the RIGHT at the speed of 50%
➡️ Only motor C moves, turning toward Motor B

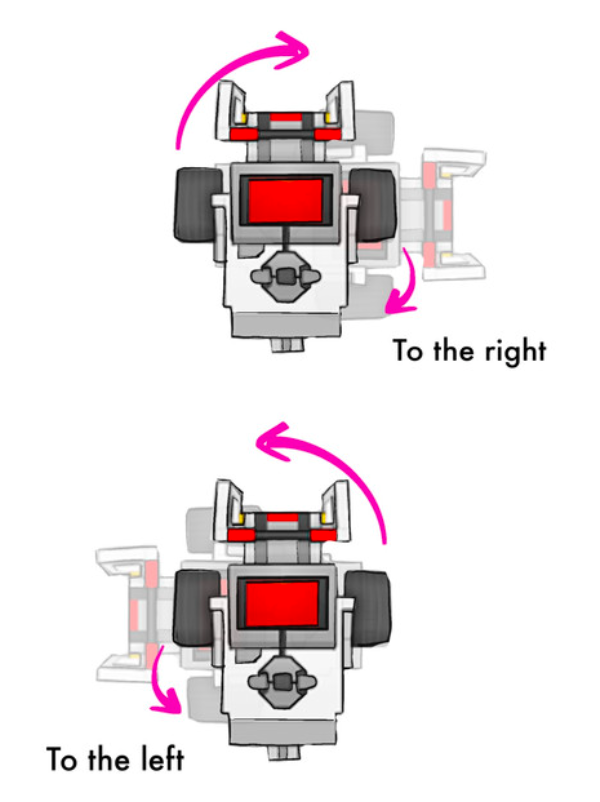

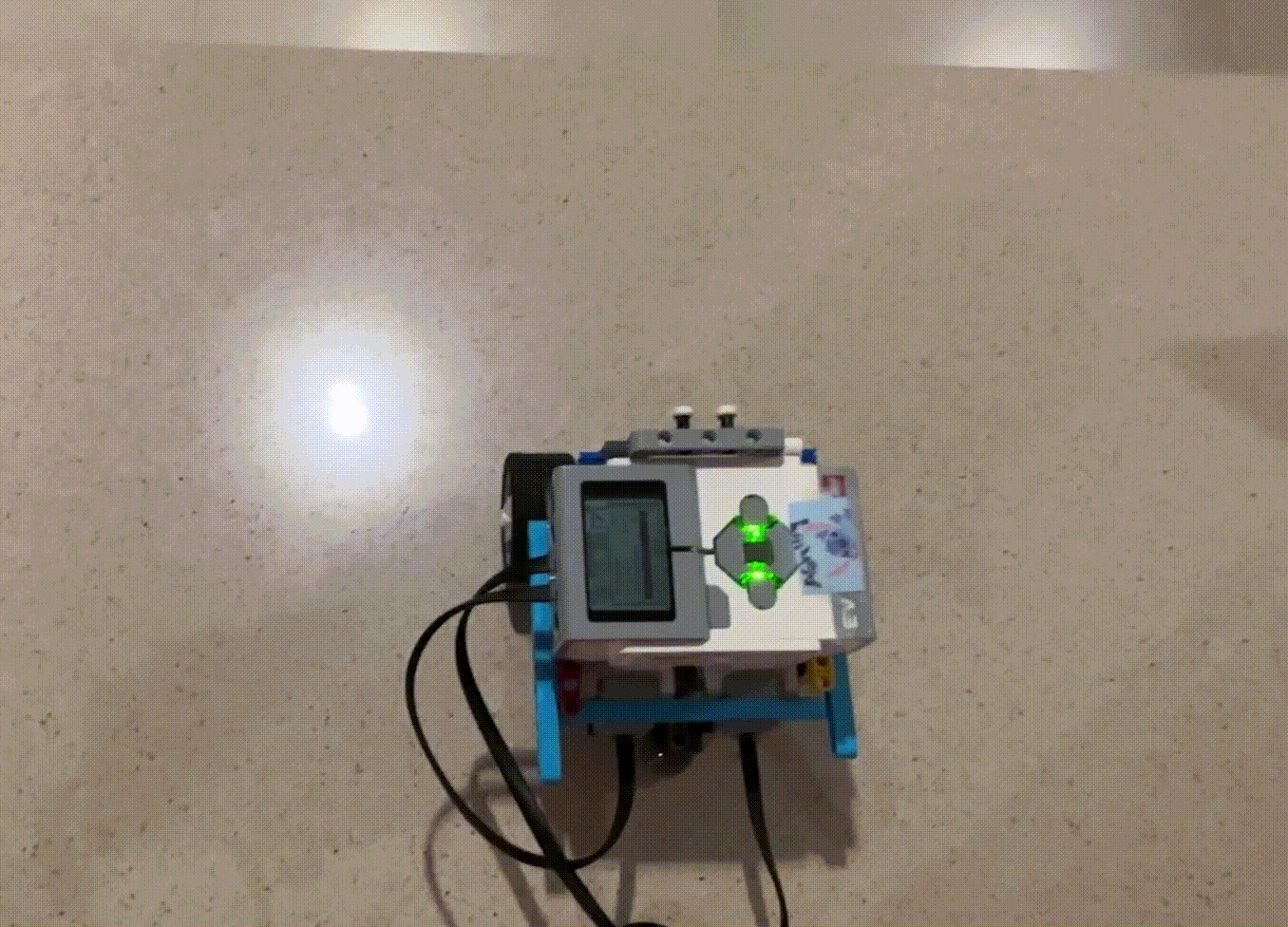

Both wheels move in opposite direction at the same speed. (Positive and negative)

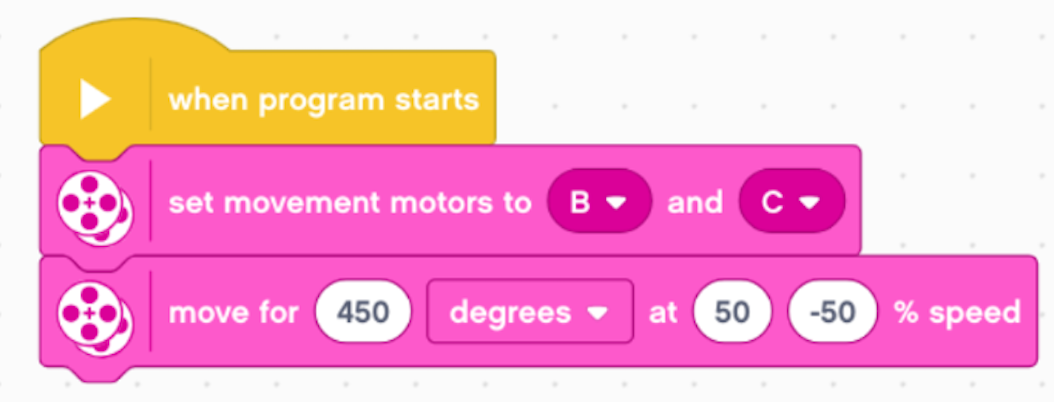

The robot turns 450 degress to the RIGHT at the speed of -50%
➡️ Notice that [left_speed] is positive. [right_speed] is negative

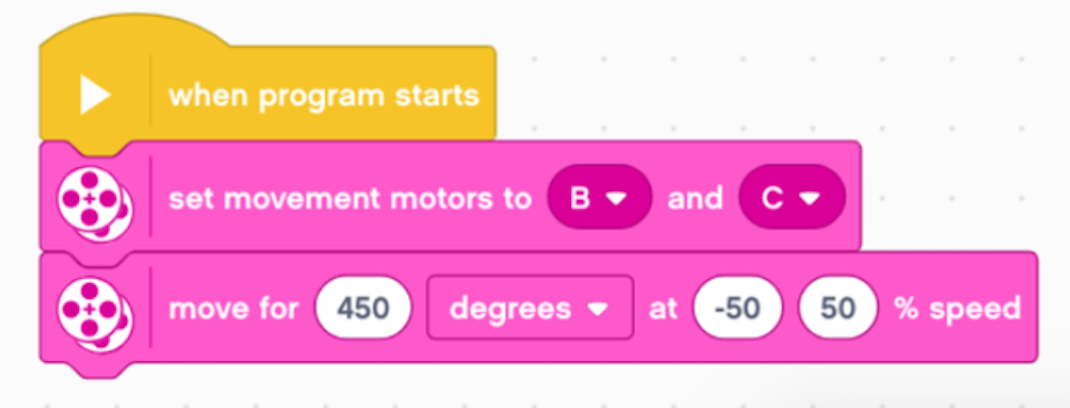

The robot turns 450 degress to the LEFT at the speed of -50%
➡️ Notice that [left_speed] is negative, [right_speed] is positive
Notice that the robot does not turn accurately.(Don't worry! we'll fix that later)

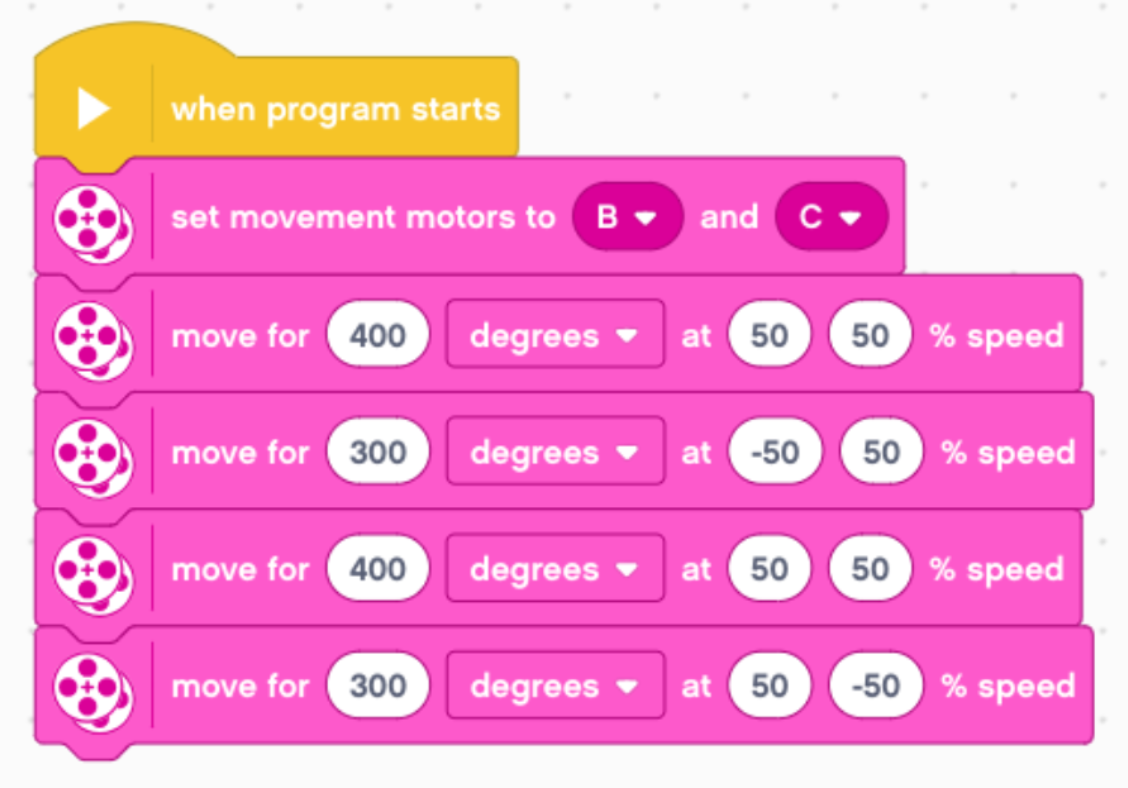

A peek to the future: This is a hint of how this robot will look!

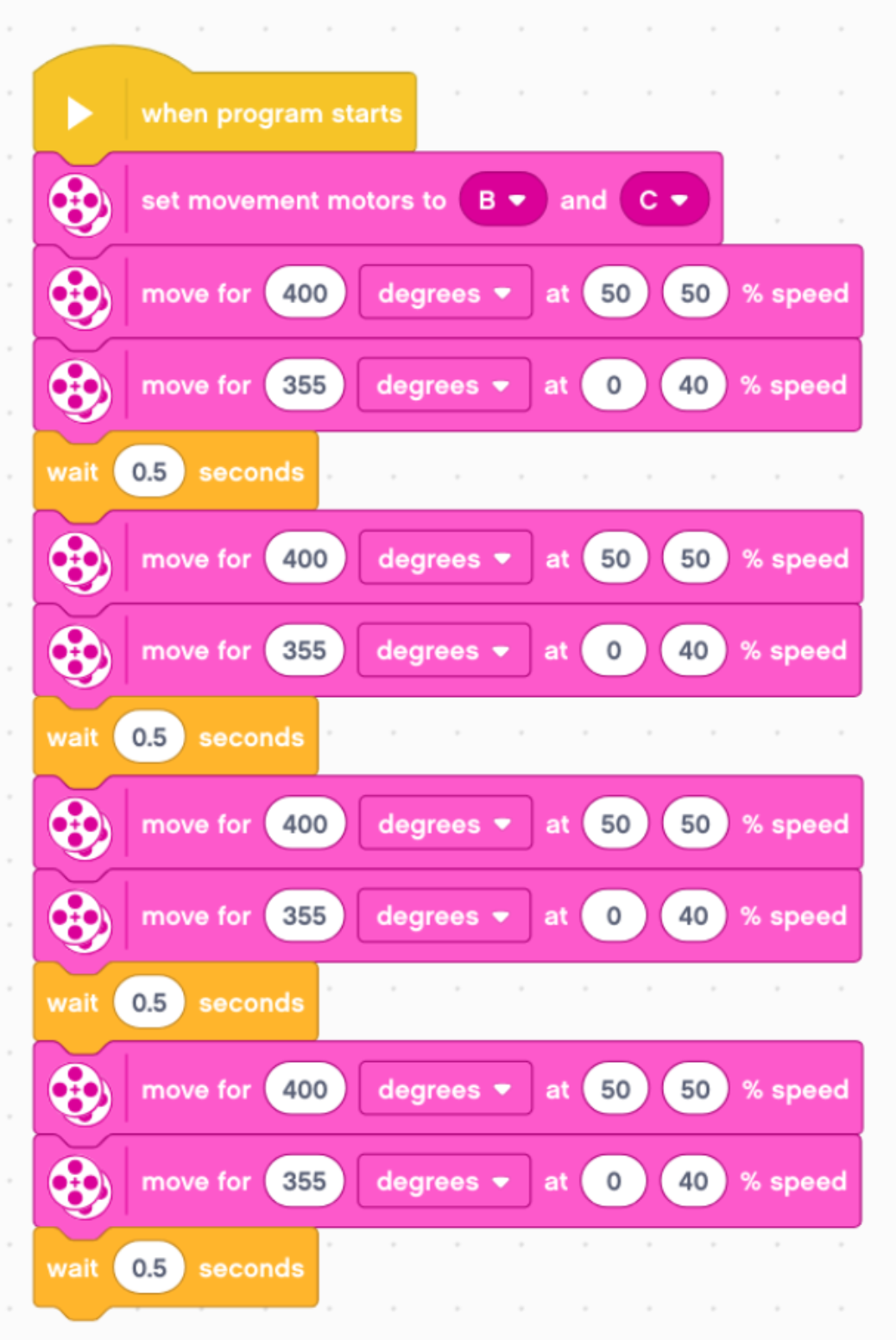

Hint:
-> Going forward: 400 degrees
-> Making the turns: 300 degrees
-> Speed: 50%
Notice that you can use pivot turn and then move it backward.
If you found another way, that's awesome!
